In both industrial and municipal pipeline networks, the choice of connection method directly influences sealing integrity and long-term maintainability. Known for their structural rigidity and consistent sealing capability, flanged gate valves have become a preferred isolation solution for larger pipelines. Understanding these characteristics is essential for making sound engineering selections.
What Is a Flanged Gate Valve?
A flanged gate valve is a type of gate valve equipped with flanges at both ends, allowing it to be securely bolted to pipeline flanges. This connection provides strong mechanical stability and dependable sealing performance. When the valve is fully open, the internal flow path is nearly unobstructed, helping minimize pressure loss—making it particularly well suited for medium-to-large diameter pipeline systems where reliable isolation is required.

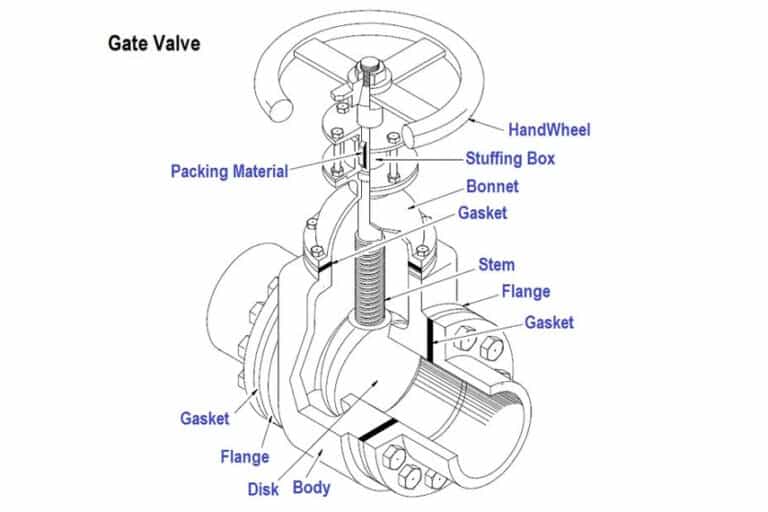

Key Components of a Flanged Gate Valve
How Does a Flanged Gate Valve Work?
When the handwheel or actuator rotates the stem, the gate rises or lowers accordingly, allowing the valve to open or close.
- Fully Open:
The gate lifts completely out of the flow path, enabling the media to pass through in a nearly straight line. This results in low flow resistance and minimal pressure loss, which is why gate valves are often selected for pipelines that require high flow capacity or reduced hydraulic resistance.
- Fully Closed:
The gate presses tightly against the valve seats to create a reliable seal, effectively stopping the flow. Because shut-off depends on the close contact between sealing surfaces, gate valves are best suited for fully open or fully closed operation and are generally not recommended for flow regulation.
Advantages of a Flanged Gate Valve
In industrial and municipal pipeline systems, flanged connections allow gate valves to demonstrate multiple advantages in terms of structural reliability and engineering adaptability.
- Secure Connection, Stable Structure
Bolted directly to the pipeline, flanged joints provide a firm connection capable of withstanding pressure fluctuations, water hammer, and external loads while maintaining overall structural integrity. This makes them particularly suitable for pipeline systems where safety is a priority.
- Reliable Sealing with Predictable Performance
Standardized flange interfaces help ensure even load distribution, reducing the likelihood of leakage. In systems designed for long-term continuous operation, this level of sealing predictability is especially valuable.
- Well Suited for Medium- to Large-Diameter Pipelines
As pipe diameters increase, flanged connections perform exceptionally well in terms of joint strength, alignment, and stress handling. For this reason, they are widely used in water supply, energy infrastructure, and industrial pipeline networks.
- Simplified Maintenance and Replacement
When inspection or replacement is required, the valve can typically be removed by unbolting the flanges—without cutting the pipeline or carrying out complex procedures. This helps minimize downtime and lowers maintenance costs.
- Low Flow Resistance for Improved System Efficiency
When fully open, a gate valve provides a nearly straight-through flow path, helping reduce pressure loss and supporting efficient media transport.
Flanged vs Threaded vs Welded Gate Valves
Different connection methods vary significantly in terms of mechanical strength, sealing performance, and maintenance approach. Understanding these characteristics helps engineers make more informed and practical decisions during system design.
Engineering Characteristic | Flanged Connection | Threaded Connection | Welded Connection |
Typical Pipe Size | More common in medium to large diameters | Primarily used for small diameters | Often applied in high-pressure or critical pipelines (across a wide size range) |
Installation Method | Bolted connection with good alignment | Screwed directly into the pipe, relatively simple installation | Permanently welded to the pipeline |
Structural Strength | High strength with stable joint performance | Relatively limited strength | Offers the highest level of joint integrity |
Sealing Reliability | Stable performance with strong predictability | More sensitive to installation quality | Typically associated with lower leakage risk |
Maintenance Convenience | Easy to disassemble, supporting inspection and replacement | Removable, but repeated installation may damage threads | Maintenance is challenging and usually requires pipe cutting |
Engineering Flexibility | Balances strength and maintainability | Flexible, but with a narrower range of applications | Lower flexibility, better suited for permanent installations |
Typical Applications | Municipal networks, industrial pipelines, water supply systems | Auxiliary lines and light-duty systems | High-temperature, high-pressure, or systems where frequent maintenance is not expected |
Where Are Flanged Gate Valves Used?
Flanged gate valves are widely used in pipeline systems that require dependable shut-off capability.
- Municipal Water Supply and Drainage Systems
Well suited for main pipelines and critical network nodes, helping support stable, long-term operation.
- Water Treatment Facilities
Their ease of removal allows maintenance work to be carried out more efficiently.
- Industrial Pipeline Systems
Reliable isolation performance helps reduce the risk of unplanned downtime.
- Energy and Power Sectors
In large-diameter or critical transmission lines, connection strength becomes particularly important, making flanged gate valves a practical choice.
- Ensure Flange Standards Match
Confirm that the flange specifications are consistent to prevent leakage risks caused by mismatched connection parameters.
- Maintain Proper Pipe Alignment
Avoid forcing the pipeline into position during installation. Excess assembly stress can compromise long-term sealing reliability.
- Tighten Bolts Evenly
Use a diagonal tightening sequence and increase torque gradually to promote balanced load distribution across the flanges, helping establish a stable sealing interface.
- Allow Adequate Operating Space
For OS&Y (outside screw and yoke) gate valves, ensure there is sufficient clearance for stem travel so that normal operation and future maintenance are not restricted.
Recommended Installation Orientation
- Flow Direction: Most flanged gate valves provide bidirectional sealing and do not require a specific flow direction.
- Mounting Position: Installation on horizontal pipelines with the stem oriented vertically upward is recommended. When installed on vertical pipelines, avoid positioning the stem downward, as debris may enter the packing area and the weight of the gate could affect sealing performance.
Common Issues and Maintenance Recommendations
- Leakage
Check whether the flange bolts are loose and inspect the sealing surfaces for damage. Retighten the bolts evenly or replace the gasket if necessary.
- Gate Sticking
Verify whether the media contains solid particles. Clean the valve cavity regularly and lubricate the stem when required.
- Difficult Stem Operation
Inspect whether the packing is overly tight or if the stem shows signs of corrosion. Adjust the packing gland as needed and clean or lubricate the stem to restore smooth operation.
Flanged gate valves, with their robust structure, dependable sealing, and ease of maintenance, have become an important choice for achieving reliable fluid isolation in medium- and large-diameter pipeline systems.
