Ball Valve

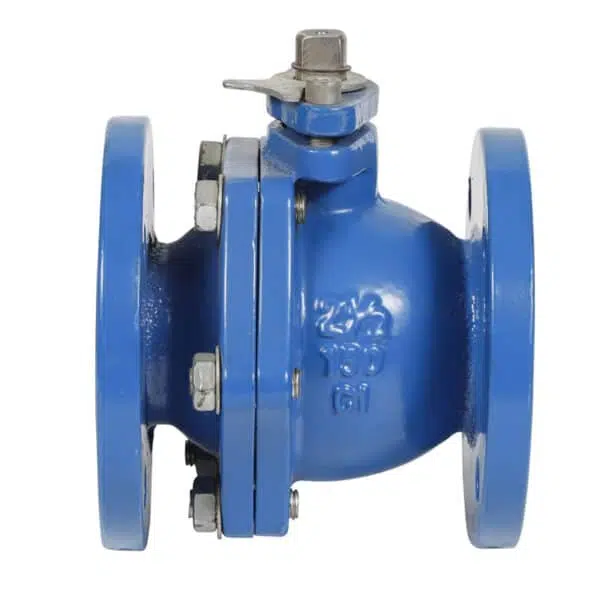

Cast Iron Flanged Ball Valve

Key specifications
TpyeFlange
Face to FaceAPI609, BS5155, DIN3202, ISO5752
FlangeDIN, BS, UNI, ISO, ANSI, AS, JIS
Mounting FlangeISO5211
Working PressurePN16 (200 PSI)
ApplicationHVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power & Utilities, Paper and Pulp, Ship Building
  • Factory-direct manufacturer since 2002
  • Sizes, materials and connections customized
  • Exported to 50+ countries and regions

Product Description – Cast Iron Flanged Ball Valve

The Cast Iron Flanged Ball Valve is a high-performance valve designed for reliable flow control in engineering projects and municipal water systems. Featuring a robust cast iron body and flanged ends, this valve ensures easy installation, strong pipeline connection, and long-lasting operation under various pressure conditions.

This Cast Iron Flanged Ball Valve offers smooth quarter-turn operation, providing secure shut-off and minimal pressure drop. Its corrosion-resistant construction makes it suitable for clean water supply, wastewater management, HVAC systems, and other industrial fluid control applications.

Whether you’re working on a large-scale infrastructure project or managing a water distribution network, our Cast Iron Flanged Ball Valve delivers dependable performance with low maintenance needs.

As one of China’s leading valve manufacturers, we are dedicated to supplying top-quality valves that meet international standards. Trusted by global contractors and engineers, our cast iron flanged ball valves are built for efficiency, durability, and cost-effective performance in every environment.

Stainless steel ball valve Drawing

Standard of implementation

Attribute Details
Type Flange
Face to Face API609, BS5155, DIN3202, ISO5752
Flange DIN, BS, UNI, ISO, ANSI, AS, JIS
Mounting Flange ISO5211
Working Pressure PN16 (200 PSI)
Application HVAC, Water Supply & Sewage, Food & Beverage, Chemical/Petrochemical/Processing, Power & Utilities, Paper and Pulp, Ship Building

Standard Materials Of Main Parts

NO PART NAME MATERIAL
1 Bonnet CI/DI
2 Body CI/DI
3 Ball SS
4 Stem Ss410
5 Seat PTFE
6 Hand lever CI/DI

Dimensions:(mm)

DN 15 20 25 32 40 50 65 80 100 125 150 200
1/2″ 3/4″ 1″ 1¼” 1½” 2″ 2.5″ 3″ 4″ 5″ 6″ 8″
L 115 120 125 130 140 150 170 180 190 325 350 400
H 59 63 75 86 105 115 135 155 170 195 240 295
D 95 105 115 140 150 165 185 200 220 250 285 340
D1 65 75 85 100 110 125 145 160 180 210 240 295
n-d 4-15 4-15 4-15 4-19 4-19 4-19 4-19 8-19 8-19 8-19 8-23 12-23
