Ball Type Check Valve
Product Description The Ball Type Check Valve is an efficient and reliable solution for backflow prevention…
View details
| Type | Wafer |
|---|---|
| Face to Face | API609, |
| Flange | DIN, |
| Mounting Flange | 1S05211 |
| Working Pressure | PN16(200PSI) |
| Appliaction | HVAC, |

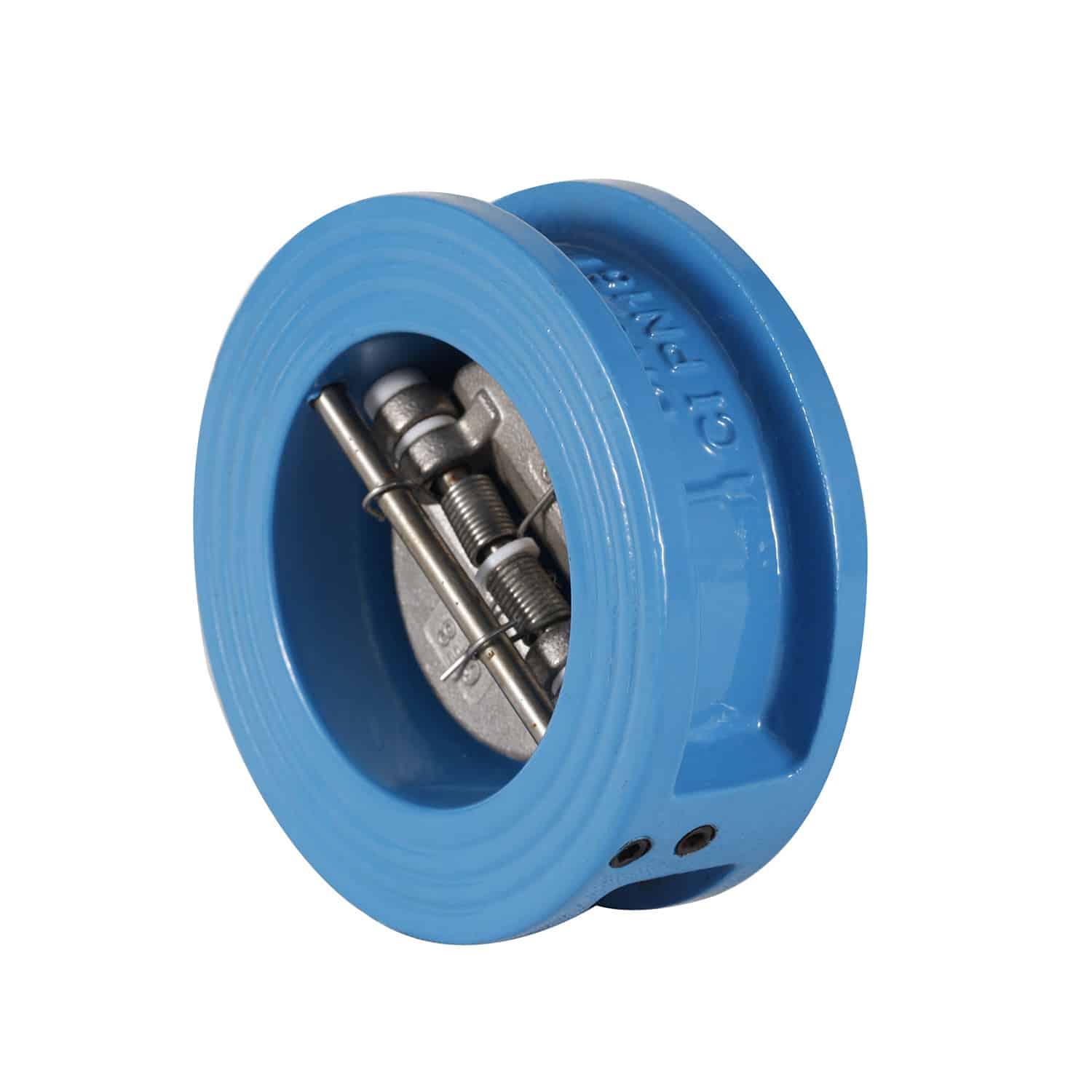

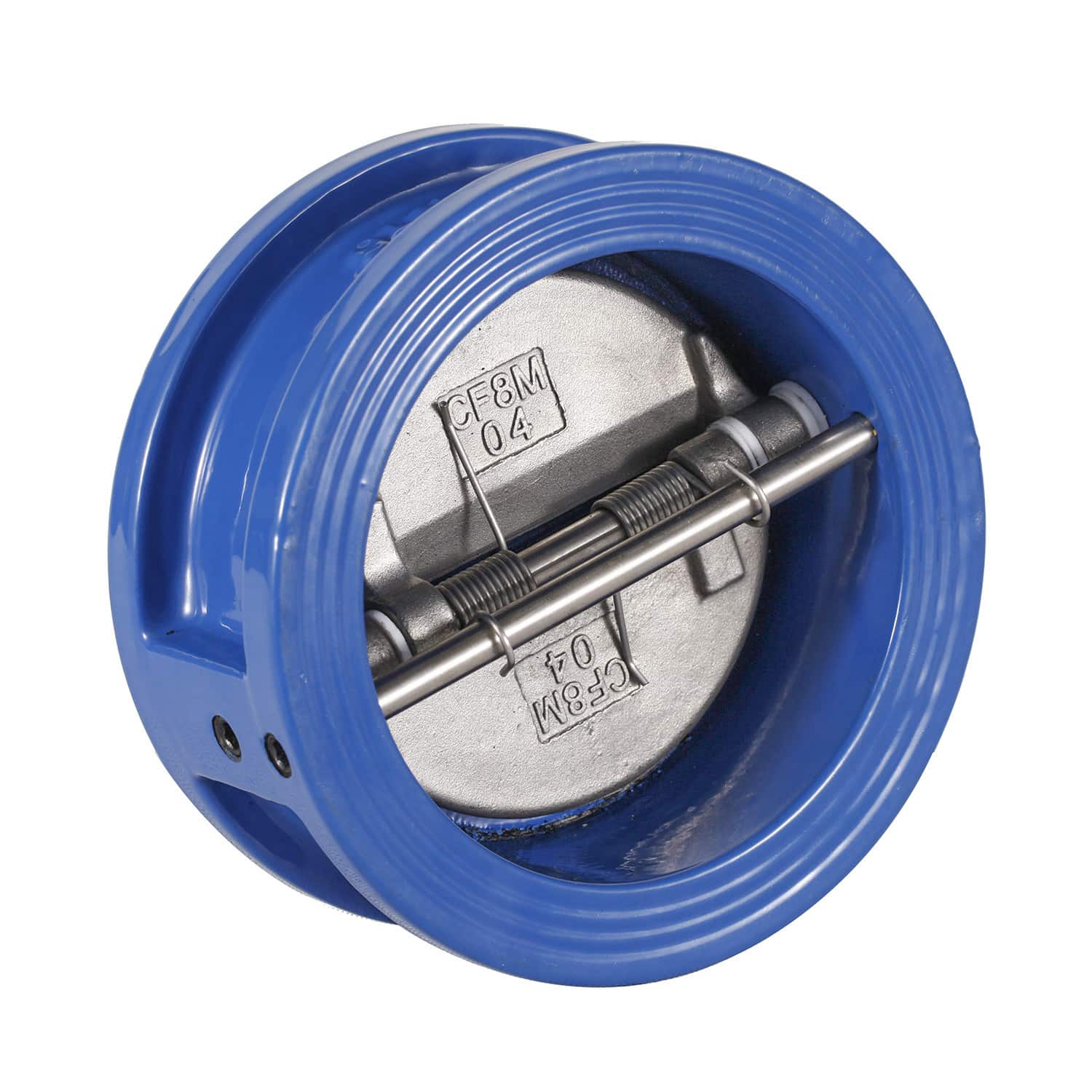

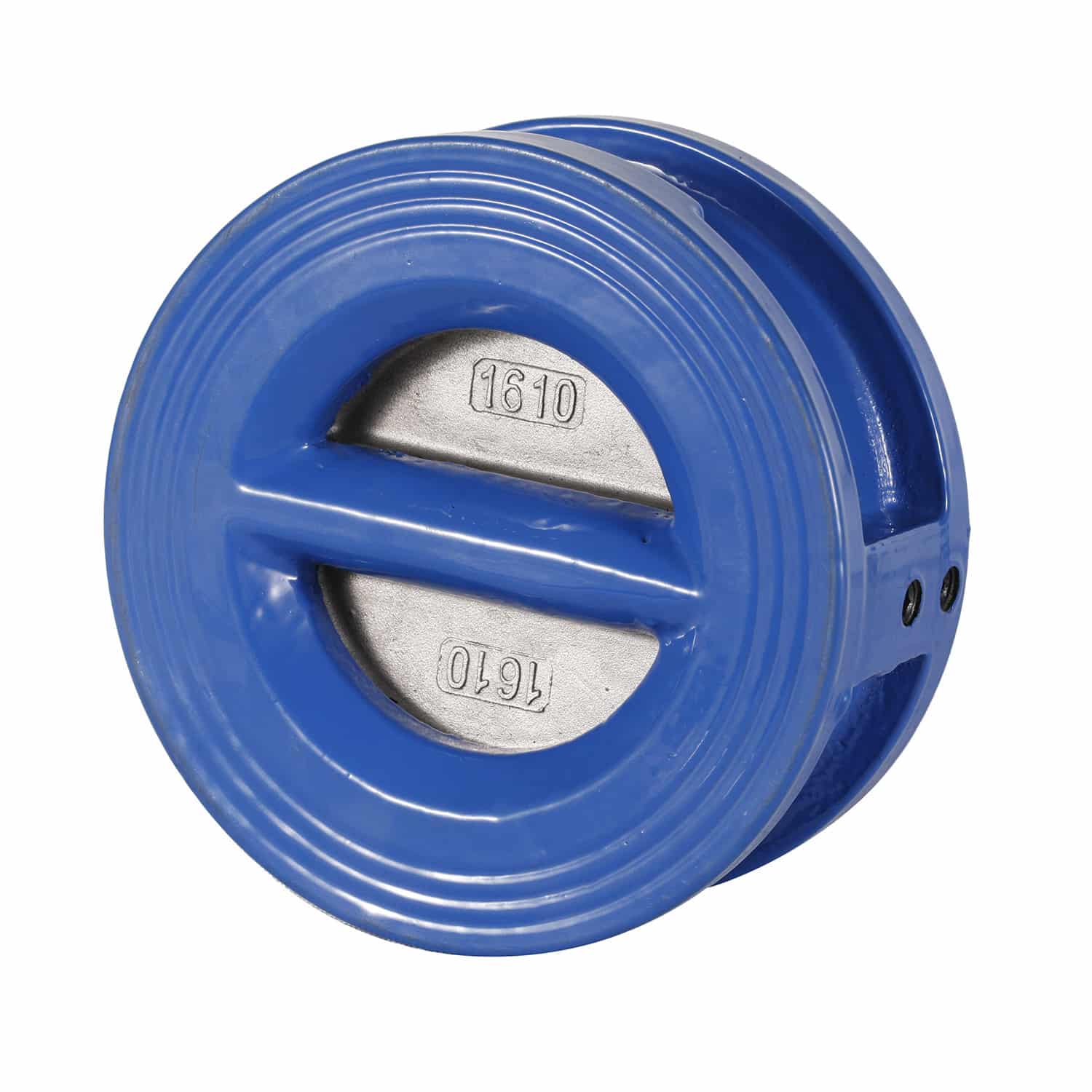

Dual Plate Wafer Check Valve is a compact and efficient solution for preventing backflow in water, gas, oil, and other fluid systems. Designed with two spring-loaded plates, this valve offers quick response and minimal pressure loss, making it ideal for space-constrained pipelines.
The dual plate wafer check valve operates automatically when fluid flows in the forward direction, with the plates opening under pressure. When flow stops or reverses, the springs quickly push the plates closed, providing a tight seal that protects pumps, compressors, and upstream equipment.
Manufactured from cast iron, stainless steel, or carbon steel, this valve is corrosion-resistant and built for long service life. The wafer-style body allows for installation between standard flanges, making it easy to integrate into existing systems without major modifications.
Thanks to its lightweight and low-profile design, the dual plate wafer check valve is often used in HVAC, water treatment, petrochemical, and marine applications. It meets international standards such as API 594 and EN 12334 and is pressure-tested before delivery.
Whether you’re designing a new system or replacing older, bulky swing check valves, the dual plate wafer check valve offers superior performance in a compact form factor.
| Nominal pressue (MPa) | 1.0 | 1.6 | |
|---|---|---|---|
| Nominal diameter(mm) | 50-800 | 50-800 | |
| Test pressure | Shell | 1.5 | 2.4 |
| (MPa) | Seal | 1.1 | 1.76 |
| Applicable temperature | 150 | ||
| Applicable medium | Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc. | ||
| Operating mode | manual, worm gear, pneumatic, electric, etc. | ||
| Design & Manufacture | Flange Connection | Face to Face Dimension | Test & Inspection |
|---|---|---|---|
| API 594 | DIN PN10/16/25 | API594 | API 598 |
| body | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
|---|---|
| Plate | Ductile Iron, Carbon Steel, Stainless Steel |
| Spring | Stainless Steel |
| Hinge Pin | Stainless Steel |
| Plug | carbon steel |
| Body Bearing | PTFE |
| Spring Bearing | PTFE |
| Stop Pin | Stainless Steel |
| Eye Bolt | Carbon Steel |
| Body Seat | NBR, EPDM, Viton, Neoprene |
| SIZE (in) | DN | B | E | DIN PN10/16 | ANSI 150 | JIS 10K |
|---|---|---|---|---|---|---|
| 2 | 50 | 43 | 66 | 107 | 102 | 101 |
| 2-1/2 | 65 | 46 | 86 | 127 | 121 | 121 |
| 3 | 80 | 64 | 95 | 142 | 133 | 131 |
| 4 | 100 | 64 | 118 | 162 | 171 | 156 |
| 5 | 125 | 70 | 146 | 192 | 193 | 187 |
| 6 | 150 | 76 | 174 | 218 | 219 | 217 |
| 8 | 200 | 89 | 225 | 273 | 276 | 267 |
| 10 | 250 | 114 | 266 | 328 | 336 | 330 |
| 12 | 300 | 114 | 311 | 378/382 | 406 | 375 |
| 14 | 350 | 127 | 361 | 438/442 | 448 | 420 |
| 16 | 400 | 140 | 411 | 488/495 | 511 | 483 |
| 18 | 450 | 152 | 451 | 538/555 | 546 | 538 |
| 20 | 500 | 152 | 506 | 592/617 | 603 | 593 |
| 24 | 600 | 178 | 625 | 695/734 | 714 | 697 |
| 28 | 700 | 229 | 721 | 809 | 828 | 807 |
| 32 | 800 | 241 | 826 | 916 | 936 | 917 |
