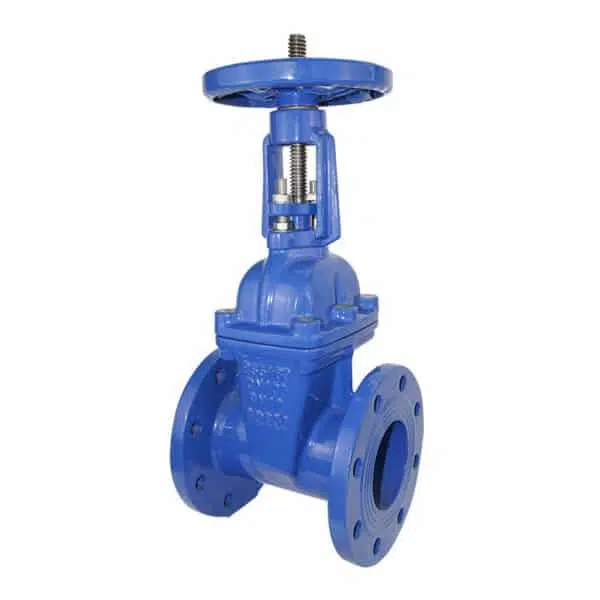

Rising Stem Resilient Seat Gate Valve is a reliable choice for systems requiring visual valve position indication and strong shut-off performance. Designed with a rising stem structure, this valve makes it easy to monitor whether the valve is open or closed—ideal for fire protection and critical water supply networks.
This Rising Stem Resilient Seat Gate Valve features a ductile iron body with a fully encapsulated EPDM rubber wedge for tight sealing and corrosion resistance. The design provides smooth operation with minimal torque and ensures long-term performance in both above-ground and underground applications.
Manufactured by one of China’s top valve suppliers, our Rising Stem Resilient Seat Gate Valve meets international standards such as EN 1074 and AWWA C509. It is available in various pressure ratings and sizes to suit both municipal and industrial pipelines.
The rising stem configuration also reduces the risk of stem jamming in dirty or sandy environments, making it a preferred solution in irrigation, drainage, and utility systems.
Choose a Rising Stem Resilient Seat Gate Valve that delivers durability, safety, and ease of use—trusted by professionals worldwide.
| Specifications: | ||
| Size | DN50—DN1200 | |
| Nominal Pressure | PN10/PN16 | |
| Working Temperature | -10°C~120°C | |
| Suitable Medium | Chemicals,air,water,steam,oil,acids,salts,etc | |
| Standards: | ||
| Design standard | DIN3352 F4/F5, AWWA C509/515,BS5163 | |
| Face to Face | DIN3202 F4/F5, BS5163 | |
| Flange Drilling | DIN2533 PN10/PN16, ANSI125/150,JIS10K | |
| Test Inspection | DIN3230, BS6755，API598 | |
| Materials: | ||
| Body | Cast Iron, Ductile Iron | |
| Disc | Ductile Iron | |
| Stem | Stainless steel | |
| Sealing Ring | NBR, EPDM | |
| O ring | NBR,EPDM |
STANDARD MATERIALS OF MAIN PARTS
DIMENSIONS:(mm)
