Metal Seated Eccentric Butterfly Valve
Metal Seated Eccentric Butterfly Valve is designed for high-performance industrial applications where soft-seated valves fall short. With a unique offset disc and precision-engineered metal seat, this valve delivers excellent sealing performance even in high-temperature and abrasive conditions.
The eccentric design minimizes wear during operation, while the metal-to-metal sealing ensures long-lasting durability in demanding systems. Ideal for steam, gas, slurry, and high-pressure pipelines, the Metal Seated Eccentric Butterfly Valve offers a reliable solution for power plants, petrochemical facilities, and heavy industrial environments.
Manufactured to strict international standards, this valve features a robust body, stainless steel or alloy seating options, and corrosion-resistant coatings. Its quarter-turn operation allows for fast opening and closing, helping to improve efficiency and reduce downtime.
The Metal Seated Eccentric Butterfly Valve is available in a range of sizes and pressure ratings, making it suitable for various project requirements. Whether you’re upgrading an existing system or designing a new one, this valve provides superior performance and long-term value.
Detail Information:
Material Option:
| Carbon steel | A216 Gr. WCB , WCC , WCA , etc |
| Low temperature steel | A352 Gr. LCB , LCC , LC1 , etc |
| Cr-Mo steel | A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc |
| Stainless Steel | A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc |
| Alloy steel | CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc |
| Super duplex | A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc |
| Aluminum bronze | B148 C95500 , C95600 , C95800 , etc |
| Monel | M30C , M35-1 , CZ100 , etc |
| Inconel | CY40 inconel 600 , etc |
| Hastelloy | CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc |
| Incoloy | CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc |

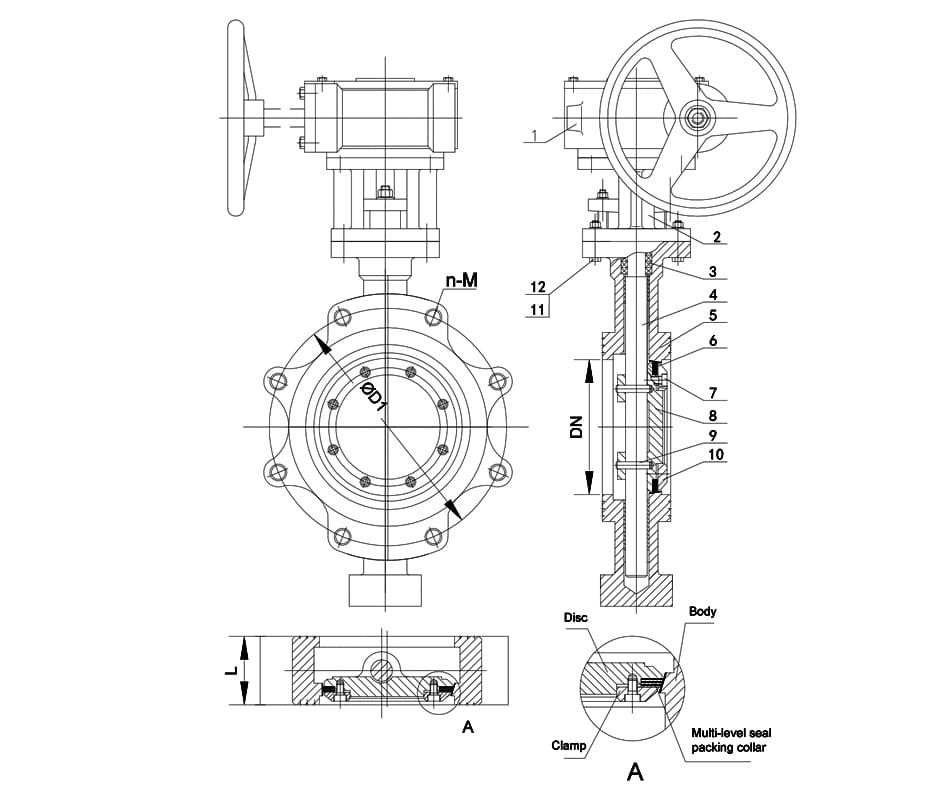

Dimensions:(mm)
| SIZE | PN16 | |||
| in | DN | L | D1 | n-M |
| 2 | 50 | 43 | 125 | 4-M16 |
| 2.5 | 65 | 46 | 145 | 4-M16 |
| 3 | 80 | 64 | 160 | 8-M16 |
| 4 | 100 | 64 | 180 | 8-M16 |
| 5 | 125 | 70 | 210 | 8-M16 |
| 6 | 150 | 76 | 240 | 8-M20 |
| 8 | 200 | 89 | 295 | 12-M20 |
| 10 | 250 | 114 | 355 | 12-M24 |
| 12 | 300 | 114 | 410 | 12-M24 |
| 14 | 350 | 127 | 470 | 16-M24 |
| 16 | 400 | 140 | 525 | 16-M27 |
| 18 | 450 | 152 | 585 | 20-M27 |
| 20 | 500 | 152 | 650 | 20-M30 |
| 24 | 600 | 154 | 770 | 20-M33 |
