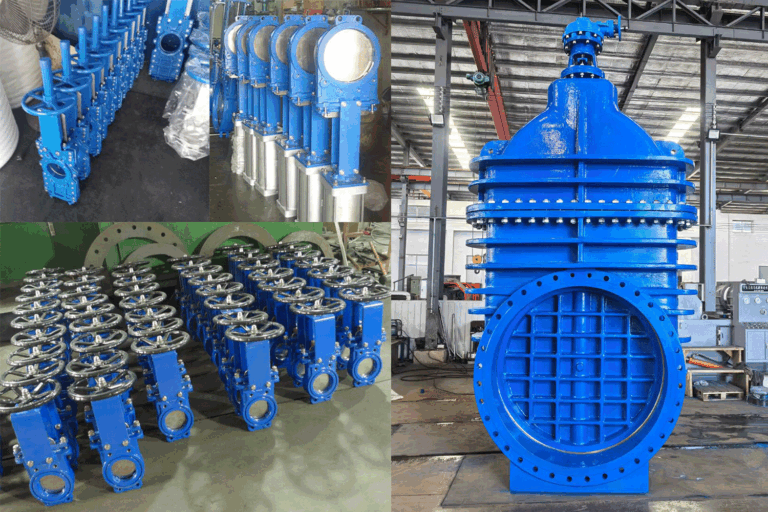

In piping systems, knife gate valves and wedge gate valves often look very similar, so many people assume they can be used interchangeably. In reality, however, these two types of valves are designed for very different applications and operating conditions.
In media containing particles or impurities — such as wastewater, slurry, or paper pulp — traditional wedge gate valves can easily experience blockage, jamming, or sealing problems. Knife gate valves, on the other hand, are specifically designed to handle these more demanding conditions.
In this article, we’ll take a simple and practical look at the main differences between knife gate valves and wedge gate valves, including their structure, sealing performance, and typical applications, to help you choose the right valve more accurately for your system.
What Is the Purpose of a Knife Gate Valve?
The main purpose of a knife gate valve is to provide reliable shutoff in piping systems handling complex media such as particles, slurry, fibers, or sludge.
Compared with traditional gate valves, knife gate valves use a thinner knife-style gate. During closing, the gate can cut through the media more easily, helping reduce blockage caused by particle or fiber buildup.
Typical applications include:
- Wastewater treatment systems
- Slurry and mining pipelines
- Paper mills
- Cement and powder handling systems
- Biomass and some chemical processes
It is important to note that knife gate valves are generally not designed for high-pressure sealing applications. Their main focus is to provide stable shutoff performance in difficult media conditions while reducing the risk of clogging and lowering maintenance costs.

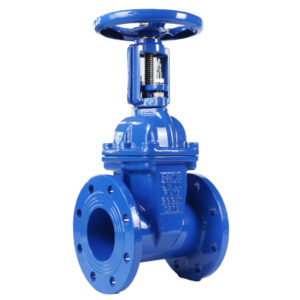

What Is the Purpose of a Wedge Gate Valve?
The main purpose of a wedge gate valve is to provide reliable shutoff and sealing in piping systems. It is commonly used for clean media or higher-pressure applications, such as water, steam, oil, and industrial utility systems.
Unlike knife gate valves, wedge gate valves use a thicker wedge-shaped gate. The tight contact between the gate and seat provides better sealing performance, making them more suitable for systems that require higher pressure resistance and tighter shutoff.
Typical applications include:
- Municipal water supply systems
- HVAC systems
- Fire protection systems
- Steam systems
- Oil and industrial piping systems
However, wedge gate valves are generally not suitable for media containing large amounts of particles or sludge. These materials can easily build up inside the valve body, leading to blockage or affecting normal sealing performance.
Knife Gate Valve vs Wedge Gate Valve: Key Differences
Although both knife gate valves and wedge gate valves belong to the gate valve family, their design purpose, structure, and suitable working conditions are quite different.
The biggest difference is:
- Knife gate valves are mainly designed for dirty media and applications where clogging is common
- Wedge gate valves are mainly designed for tighter sealing and higher-pressure service
Below are the main differences between the two:
Feature | Knife Gate Valve | Wedge Gate Valve |
Main Purpose | Slurry, sludge, and difficult media | Reliable shutoff and sealing |
Suitable Media | Media containing particles, fibers, or slurry | Clean water, steam, oil, and other clean media |
Gate Design | Thin knife-style gate | Thick wedge-shaped gate |
Sealing Performance | Moderate | Better |
Pressure Capability | Usually lower | Usually higher |
Anti-Clogging Ability | Excellent | Relatively poor |
Typical Applications | Wastewater, mining, paper mills | Water supply, HVAC, industrial piping |
Maintenance Focus | Preventing blockage | Sealing and pressure resistance |
Why Wedge Gate Valves Often Fail in Slurry Applications
In slurry systems, particles, fibers, and sediment in the media can easily build up inside the valve cavity. When the valve closes, these materials may become trapped between the gate and the seat, preventing the valve from fully closing and potentially causing leakage.
Common problems include:
- Gate jamming
- Increased operating torque
- Wear on the sealing surfaces
- Incomplete shutoff
- Leakage after long-term operation
In addition, wedge gate valves usually have a deeper valve cavity design, which further increases the risk of slurry and sediment buildup.
By comparison, knife gate valves use a thinner knife-style gate that can cut through the media more effectively during closing. This helps reduce particle buildup, making them more suitable for wastewater, mining slurry, and other difficult media applications.
Can a Knife Gate Valve Replace a Wedge Gate Valve?
In some low-pressure applications, a knife gate valve can replace a wedge gate valve. However, in most cases, the two are not directly interchangeable because they are designed for fundamentally different operating conditions.
Knife gate valves focus more on flow capacity and anti-clogging performance, while wedge gate valves are designed with greater emphasis on sealing performance and pressure resistance.
How to Choose the Right Valve
Choosing between a knife gate valve and a wedge gate valve is not about which one is “better,” but which one is more suitable for the actual working conditions.
When selecting a valve, it is important to first consider the following questions:
- Is the media clean or dirty?
- Does the media contain particles, fibers, or sludge?
- What is the operating pressure?
- Is tight shutoff required?
- Will the valve operate frequently?
- Is clogging a common issue in the system?
If the media is wastewater, slurry, mining slurry, paper pulp, or powder, a knife gate valve is usually the more suitable choice.
If the media is clean water, steam, oil, or general industrial fluid, and the system requires better sealing performance and higher pressure capability, a wedge gate valve is typically the better option.
FAQ
Usually not. Knife gate valves are mainly designed for low-pressure slurry, sludge, and wastewater applications.
In most cases, knife gate valves are more suitable because they handle particles and sludge more effectively.
Because particles and sediment can build up inside the valve cavity and interfere with gate movement and sealing.
There is no absolute “better” choice between a knife gate valve and a wedge gate valve. The key is whether the valve matches the actual working conditions.
In real projects, many valve problems are not caused by product quality itself, but by selecting the wrong valve type for the application. Choosing the right valve can help reduce leakage, blockage, and maintenance issues while also lowering downtime risks and long-term operating costs.
As a manufacturer focused on industrial valve production and export, TFW Valve supplies a wide range of gate valve and butterfly valve solutions for water treatment, HVAC, industrial piping, and wastewater systems. If you are unsure whether a knife gate valve or a wedge gate valve is more suitable for your application, TFW Valve can help you select a more reliable solution based on your actual working conditions.Feel free to contact us anytime.
