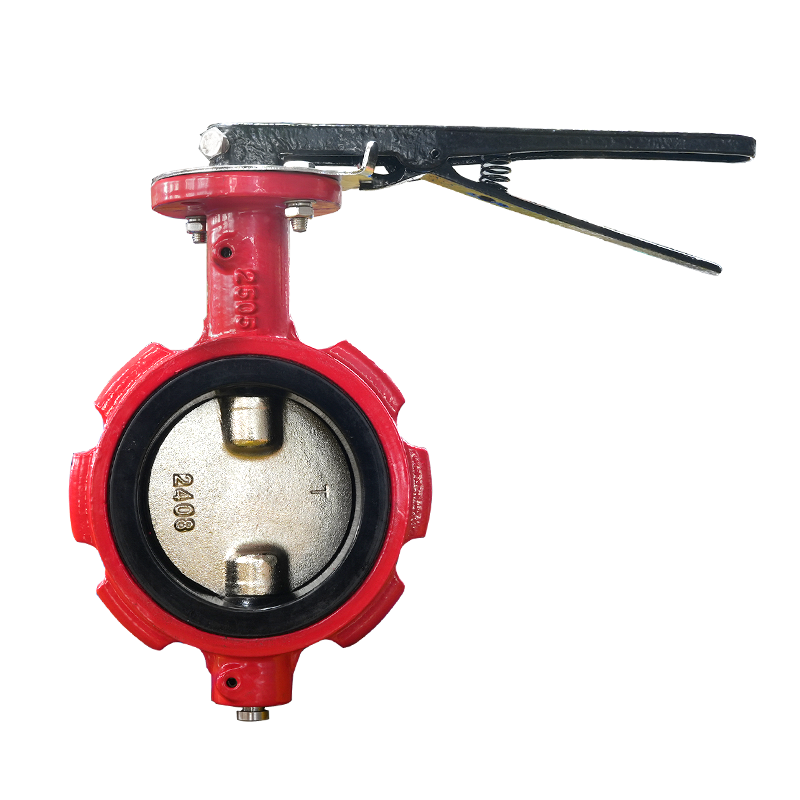

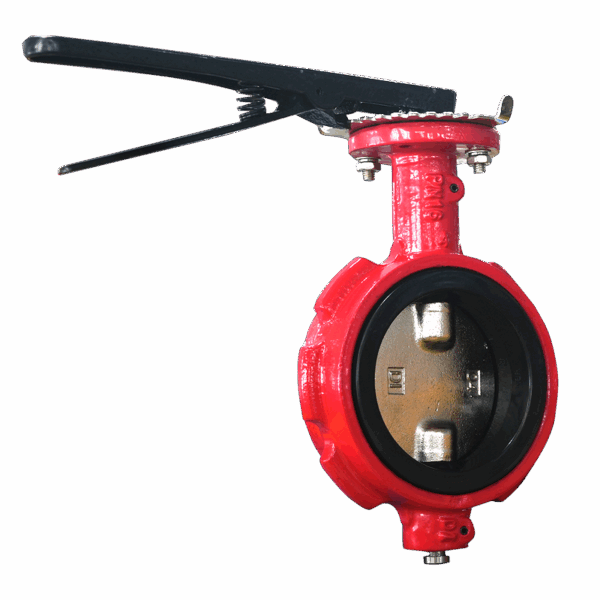

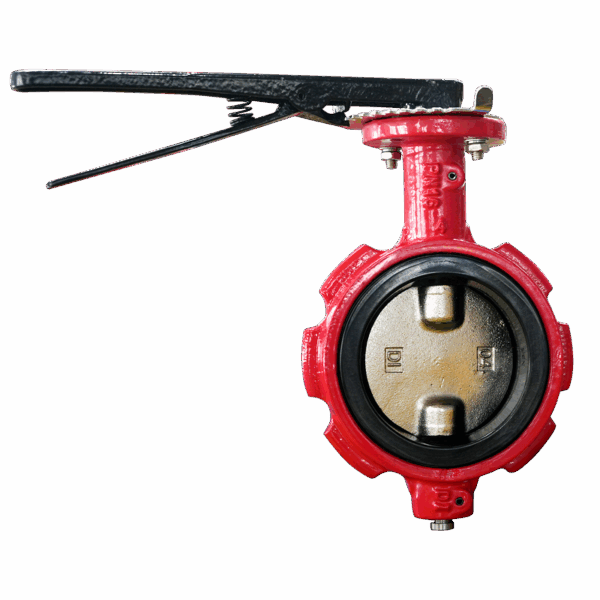

The Wafer Butterfly Valve (Half Shaft Without Pin) is specifically engineered for reliable flow control in engineering projects and water systems. Featuring a half-shaft without pin design, this valve eliminates the traditional shaft-pin connection, reducing potential leakage points and enhancing sealing performance. Its wafer-style body allows for compact installation between flanges, making it suitable for limited-space pipeline layouts.
Manufactured from high-quality materials with corrosion resistance, this wafer butterfly valve delivers smooth operation, low torque requirements, and long service life. It is ideal for medium-pressure clean water applications, municipal water distribution, HVAC systems, and other engineering projects requiring dependable shut-off and flow regulation.
As one of China’s top butterfly valve manufacturers, we offer precision-engineered wafer butterfly valves that meet international standards, ensuring performance, durability, and value for your projects.
Wafer Butterfly Valve (Half Shaft Without Pin) Drawing
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | DI |
| 2 | Seat | EPDM |
| 3 | Lower Shaft | SS416 |
| 4 | Disc | DI |
| 5 | Upper Shaft | SS416 |
| 6 | O Ring | EPDM |
| 7 | Bushing | PTFE |
| 8 | Handle |
Dimensions:(mm)
| SIZE (in) | DN | C | PN16 D1 | PN16 n-d1 | PN10 D1 | PN10 n-d1 | ANSI 150 D1 | ANSI 150 n-d1 |
|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 42.0 | 125 | 4-18 | 125 | 4-18 | 120.5 | 4-19 |
| 2.5 | 65 | 44.7 | 145 | 4-18 | 145 | 4-18 | 139.5 | 4-19 |
| 3 | 80 | 45.2 | 160 | 8-18 | 160 | 8-18 | 152.5 | 4-19 |
| 4 | 100 | 52.1 | 180 | 8-18 | 180 | 8-18 | 190.5 | 8-19 |
| 5 | 125 | 54.4 | 210 | 8-18 | 210 | 8-18 | 216 | 8-22 |
| 6 | 150 | 55.8 | 240 | 8-23 | 240 | 8-23 | 241.5 | 8-22 |
| 8 | 200 | 60.6 | 295 | 12-23 | 295 | 8-23 | 298.5 | 8-22 |
