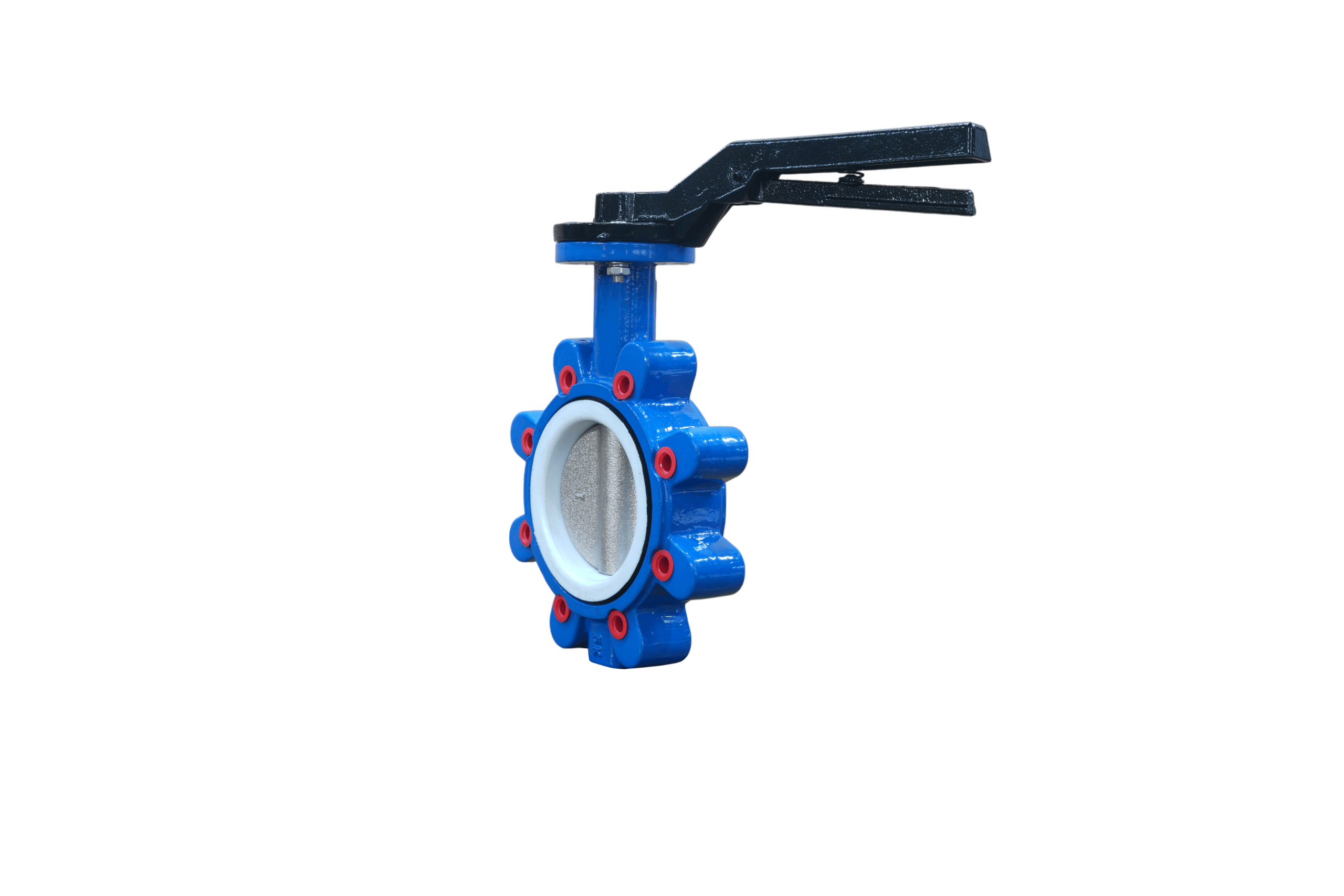

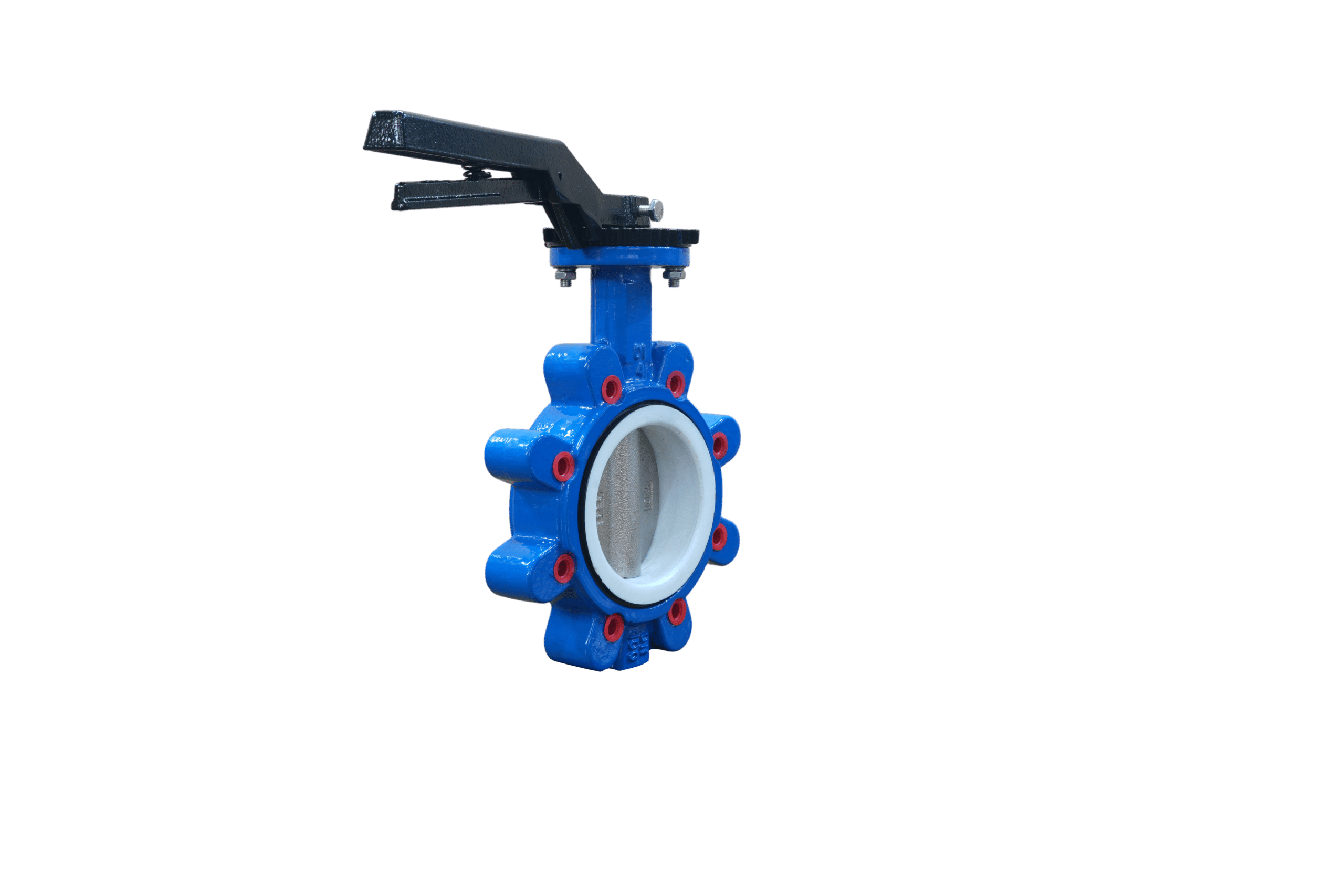

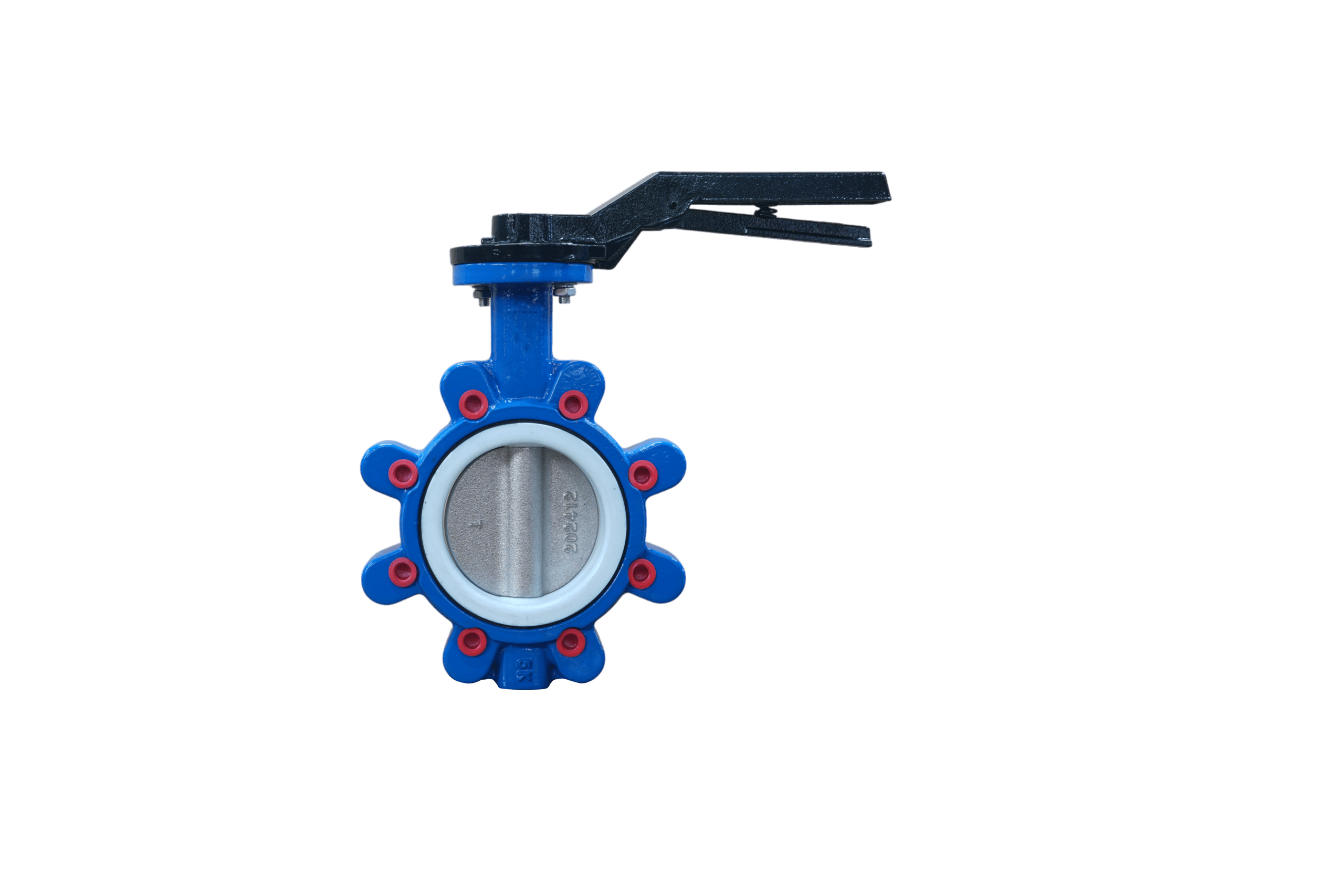

SS304 Disc EPDM Seat Lug Butterfly Valve with Handle
- Body
- Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel
- Seat
- EPDM,NBR,PTFE,Viton,Neoprene,Hypalon,Silion
- Shaft
- Stainless Steel 416,316,304
| Body | Cast Iron, |
|---|---|
| Seat | EPDM, |
| Shaft | Stainless Steel 416, |
| Disc | Ductile Iron |
| Bushing | EPDM |
| O-ring | NBR EPDM |
The Ductile Iron Disc PTFE Seat Lug Butterfly Valve with Handle is designed for manual on-off isolation in pipeline systems where stable sealing and structural strength are required. The ductile iron disc provides reliable mechanical performance, while the PTFE seat ensures consistent sealing and improved chemical compatibility compared with standard rubber seats.
This Ductile Iron Disc PTFE Seat Lug Butterfly Valve with Handle features a lug-type body that allows secure bolting to the pipeline and supports end-of-line service when necessary. Manual handle operation enables quick and direct valve control, making it suitable for small to medium pipe sizes in water treatment systems, cooling water networks, and general industrial applications where dependable isolation is required rather than flow regulation.
| Size | DN50-DN1200 |
|---|---|
| Nominal Pressure | PN10/16, 150-300LB |
| Working Temperature | -30。c – 135。C |
| Suitable Media | Chemicals, air, water, steam, oil, acids, salts ect |
| Design standard | API609, ANSI16.34, JISB2064, GB T12238 |
|---|---|
| Face to Face | API609, DIN3202, ISO5752, BS5155 |
| Flange drilling | DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K |
| Top Flange | ISO5211 |
| Test Inspection | API598 |

| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFE/VITON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304/CS |
| 4 | Disc | CF8/CF8M/DI+Ni/SS304 |
| 5 | Pin | SS |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
Tell us what valves you need. Our team will help you find the right solution.
