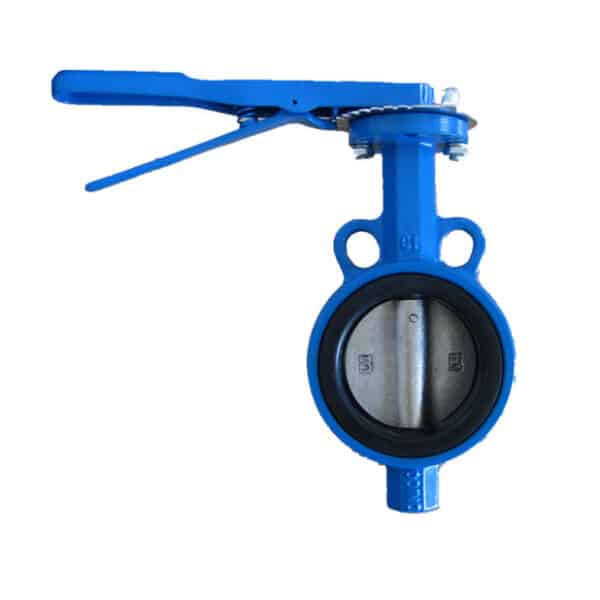

The Two Holes Wafer Butterfly Valve is a compact, lightweight solution designed for engineering projects and water systems where space-saving installation and dependable flow control are essential. Featuring a two-hole wafer-style body, this valve allows for quick alignment between pipeline flanges, ensuring secure mounting and simplified maintenance.
This valve is suitable for use in HVAC, water supply and treatment, food & beverage, chemical processing, shipbuilding, and other industrial applications. It complies with international standards such as API609, BS5155, DIN3202, and is compatible with DIN, ANSI, JIS, and other flange types. Working pressure is rated up to PN16 (200 PSI).
As one of China’s top valve manufacturers, we offer high-quality Two Holes Wafer Butterfly Valve that deliver reliable sealing performance, corrosion resistance, and long service life across diverse fluid systems.
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| 2 | Seat | NBR, EPDM, Viton, Neoprene, Hypalon, Silicon |
| 3 | Shaft | Stainless Steel 416, 316, 304 |
| 4 | Disc | Ductile Iron + Ni, CF8, CF8M, Bronze |
| 5 | Pin | Stainless Steel |
| 6 | Bushing | PTFE, Bronze |
| 7 | O Ring | NBR, EPDM |
Dimensions:(mm)
