Product Description

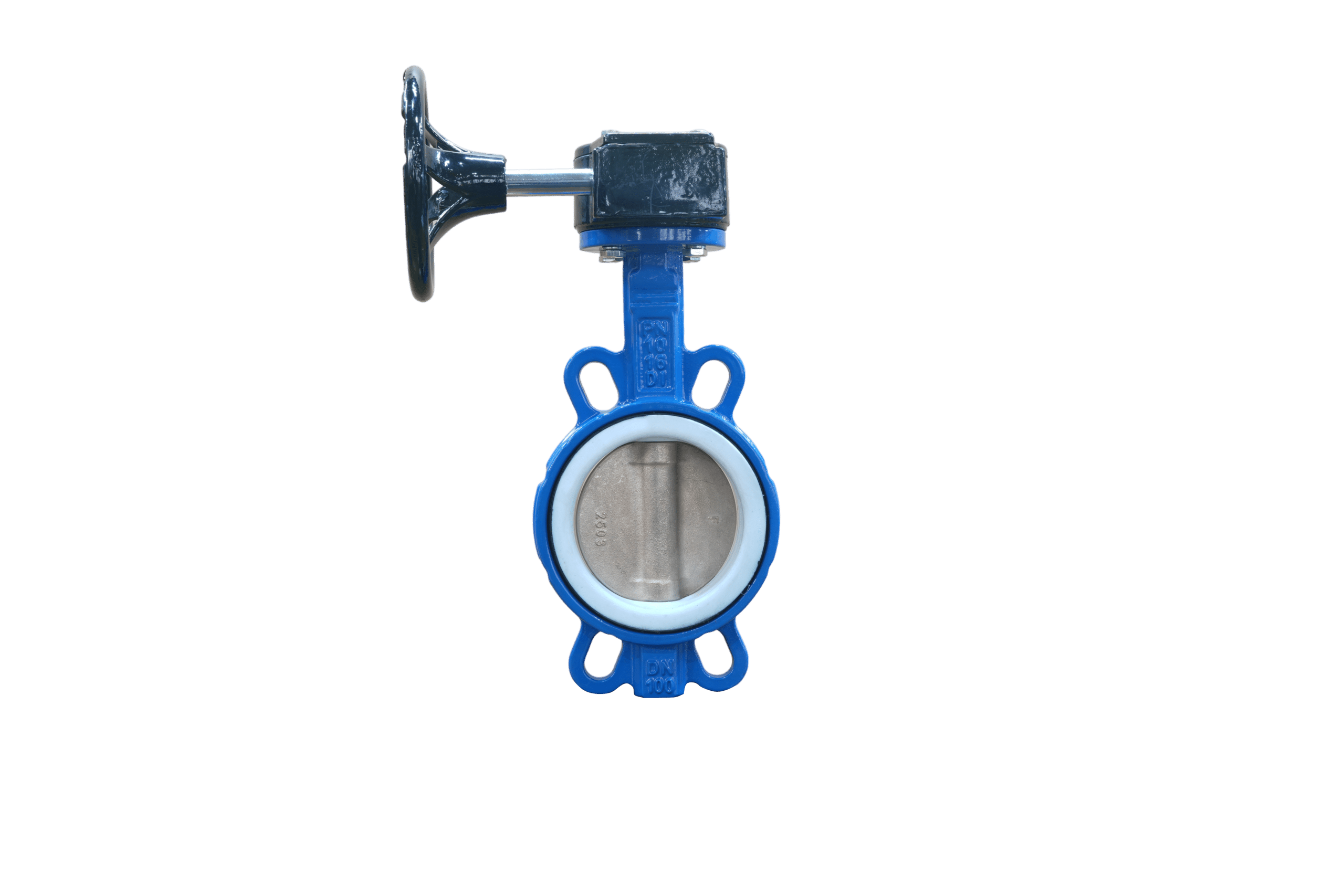

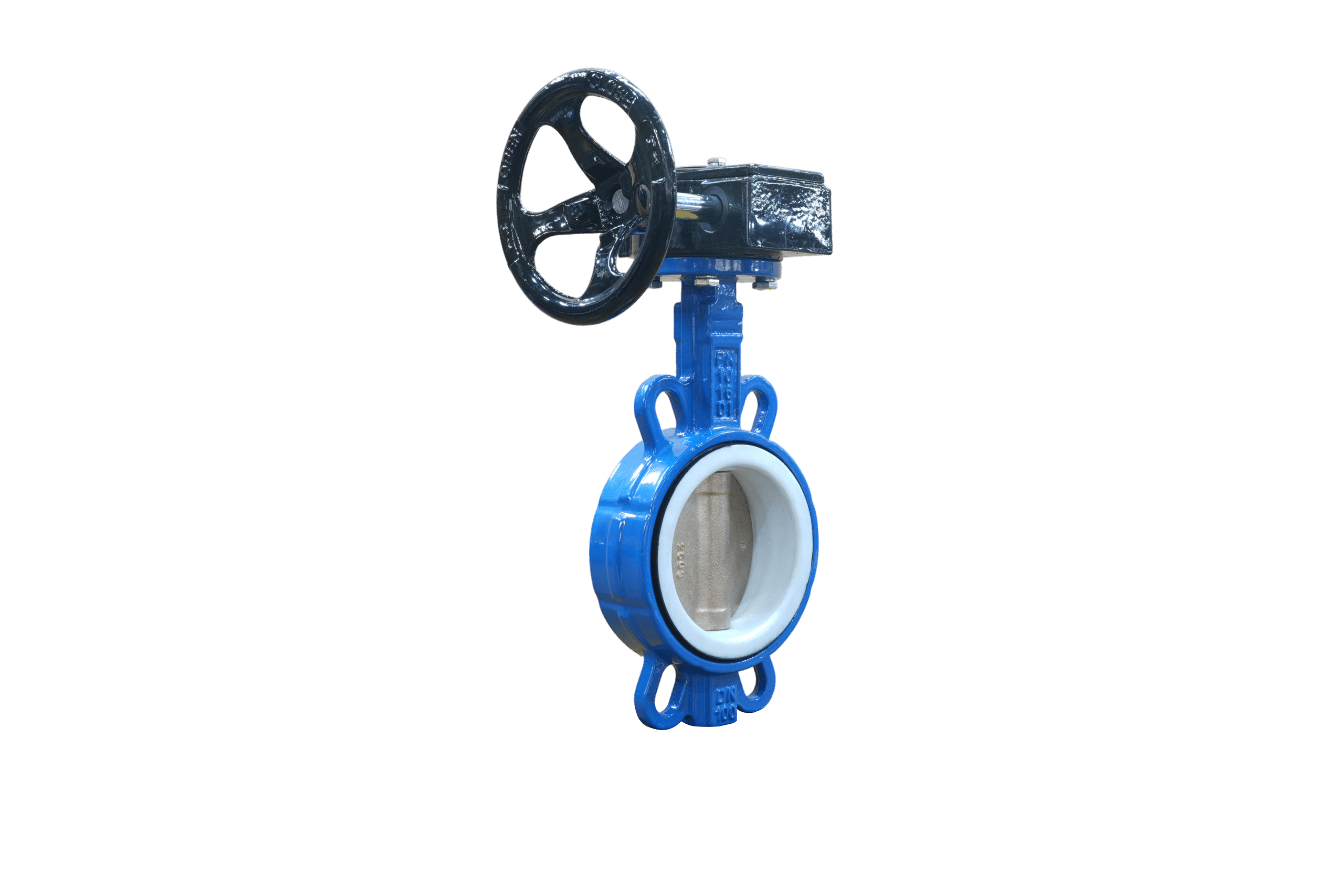

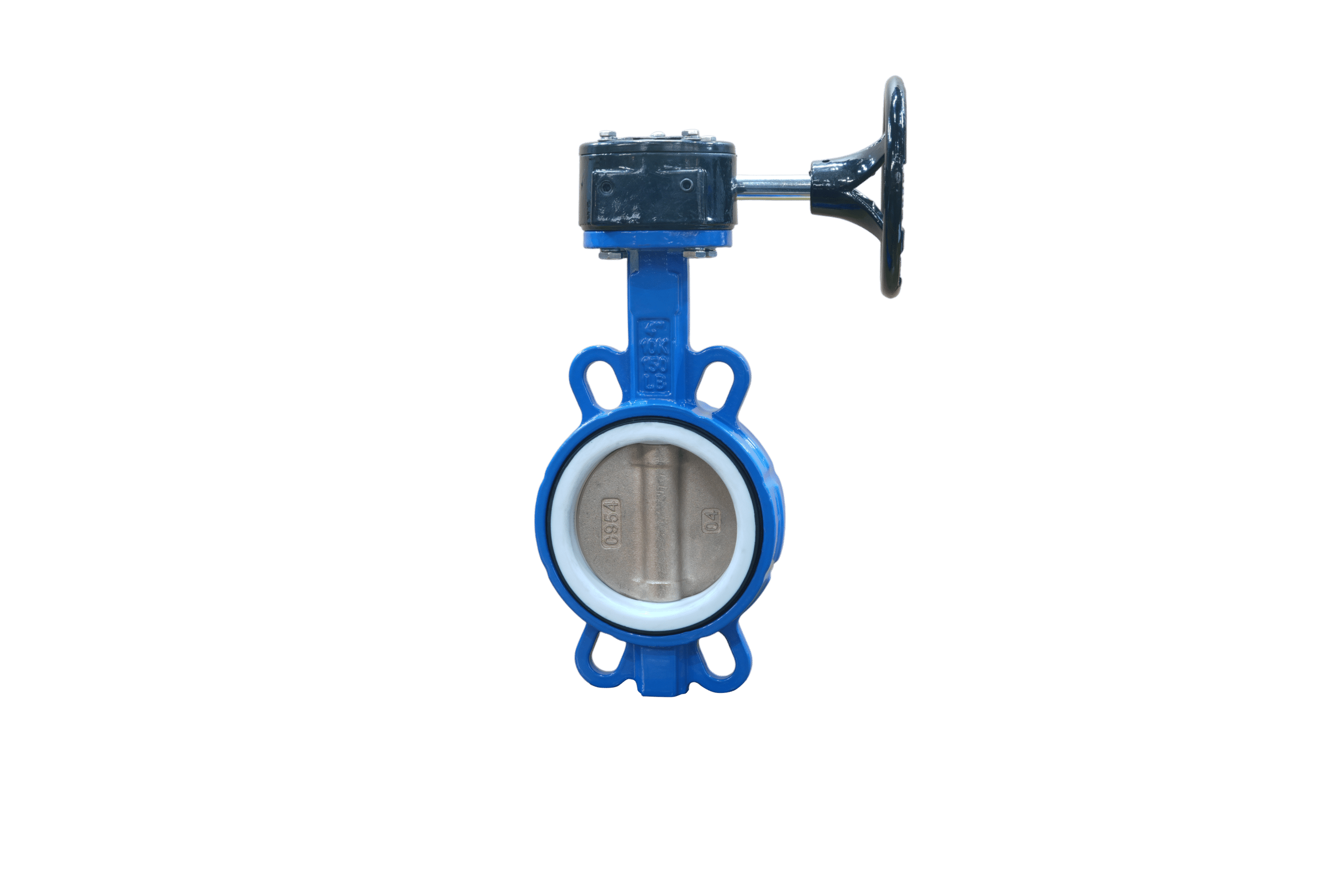

The Aluminum Bronze Disc PTFE Seat Wafer Butterfly Valve with Gear Operator is designed for reliable shut-off performance in industrial pipeline systems. The aluminum bronze disc provides excellent corrosion resistance, while the PTFE seat ensures tight sealing and low operating torque.
This Aluminum Bronze Disc PTFE Seat Wafer Butterfly Valve with Gear Operator features a compact wafer design for easy installation between flanges. The gear operator allows smooth and controlled manual operation, making the valve suitable for medium and large diameter applications in water treatment, marine, and chemical services.
Specifications:
Standards:
Material:
| Body | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Disc | Aluminum Bronze |
| Stem | Stainless Steel |
| Seat | EPDM, NBR, PTFE, VITON, HYPALON |
| O ring | EPDM, NBR |
STANDARD MATERIALS OF MAIN PARTS
| ITEM | PART NAME | MATERIAL |
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/PTFE/VITON/NBR/Hypalon |
| 3 | Shaft | SS416/316/304/CS |
| 4 | Disc | CF8/CF8M/DI+Ni/SS304 |
| 5 | Pin | SS |
| 6 | Bushing | PTFE/Bronze |
| 7 | O Ring | NBR/EPDM |
DIMENSIONS:(mm)
